Description

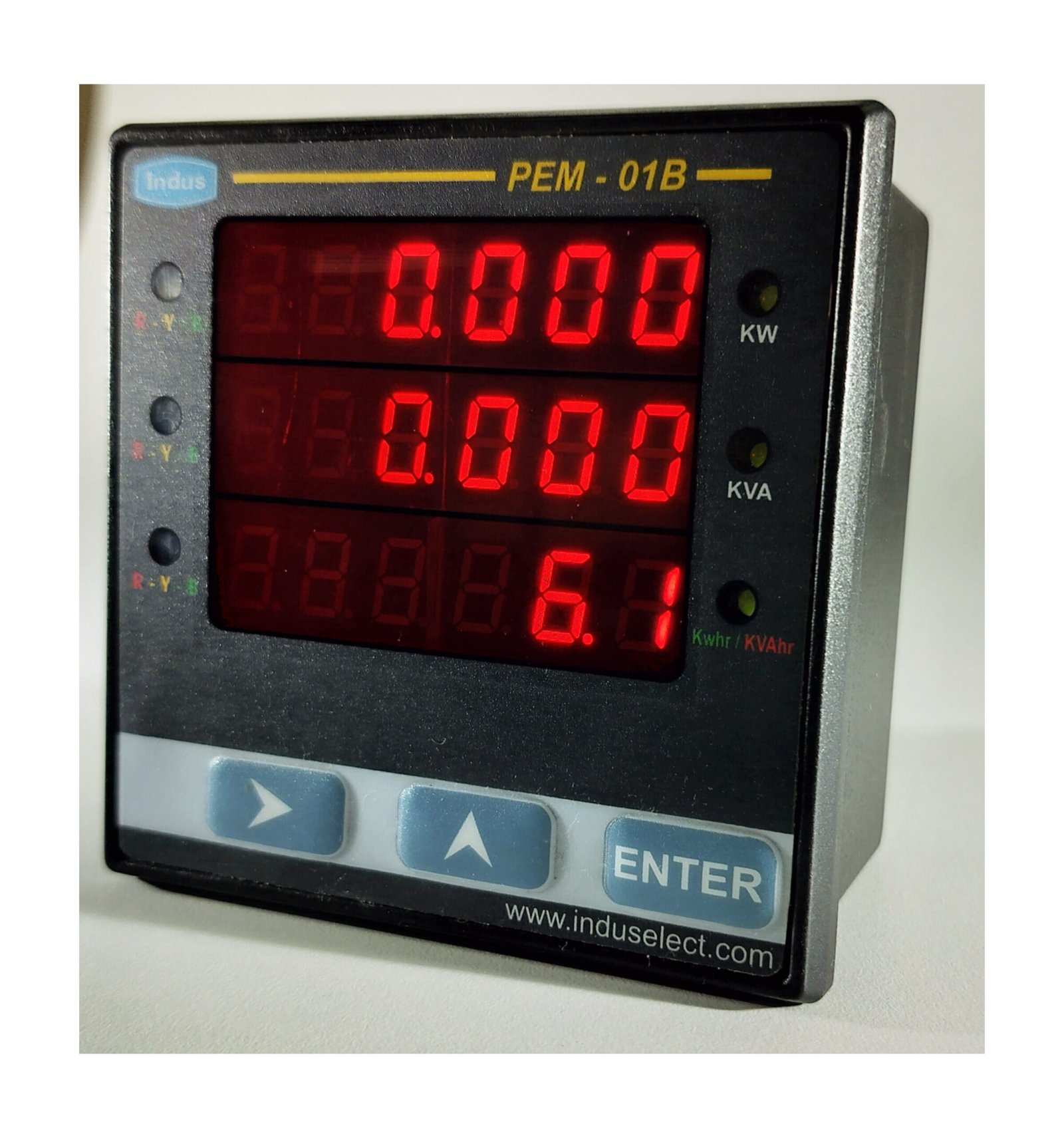

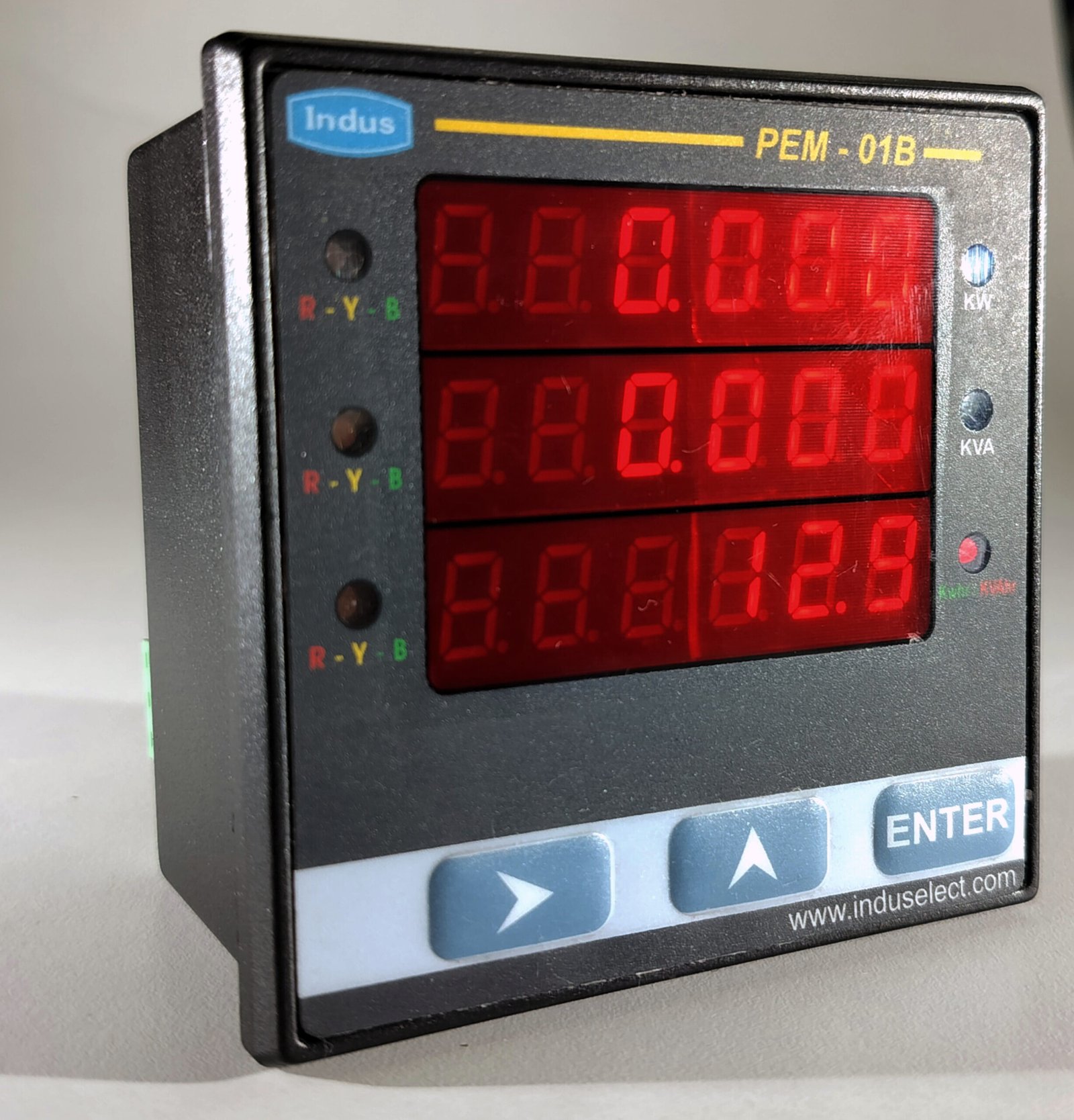

Model: Programmable Energy Meter (PEM-01B)
Features:
- 3 phase 3wire / 3 phase 4 wire Selection at Site.
- Aux Supply: 85Volt – 300 volt.
- RS485 Communication (Indus and Modbus Protocol)
- Detection PT and CT Failures
- Input Voltage: 520V (max) Line to Line.
- Input Current: 1A/5A
- 6 Digits 3 Row LED Display
- Password Protection
Salient Features
- True RMS measurements.
- 3 phase 3 wire / 3 phase 4 wire – programmable at site.
- Displays: Voltage, Current, kw (phasewise and total), kva (phasewise and total), kwhr (phsewise, slotwise and total), power factor, frequency, Runtime (slotwise and total).
- Six different Time slot settings- programmable at site.
- Import / Export facility.
- PT and CT primary Programmable at site.
- Failure message indication.
- Helps to identify the location of energy loss..
- Communication facility with computer.
Technical Specifications:
| Parameter | PEM-01B |
|---|---|
| Voltage inputs | 300V max (Line to Neutral)520V max (Line to Line) |
| Current inputs | 5A / 1A |
| Auxiliary Supply | 85V-300V AC, 50/60 Hz |
| Display | 6 Digit 3 line super bright Led Display |
| Communication | RS 485 – Modbus –RTUBaudrate : 9600, 19200, 38400 |
| Keyboard | Feather touch keyboard |
| Burden | 0.1 VA Typical |
| Dimensions | 96mm x 96mm x100mm |
| Panel Cutout | 90mm x 90mm |
